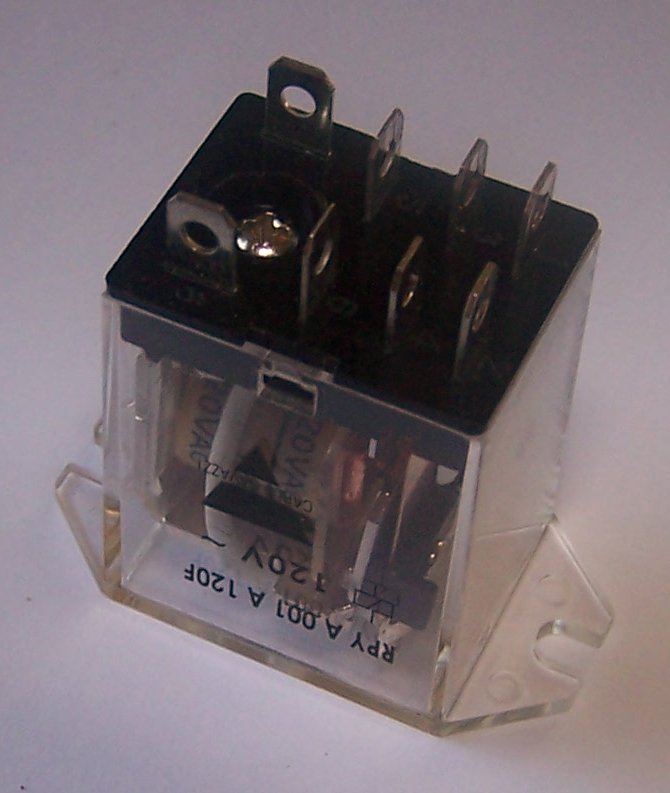

When teamed with our 120VAC Wire-In Receiver this relay will allow you to switch voltages up to 250 VAC or 30VDC at currents up to 16Amps!!!

When you need to switch voltages beyond the capacity of our normal AC and DC receivers, our normal 120VAC receiver can be teamed with this high voltage relay to switch AC loads up to 250 Volts or DC loads up to 30 Volts.

By connecting the leads from the Lightning Switch 120V receiver to the relay's control terminals, and then connecting the high voltage device you wish to switch to the relay's load terminals you effectively can use Lightning Switches to control devices up to the following capacities:

16Amps @ 250 VAC
1 HP @ 250 VAC
3/4 HP @ 120 VAC
16 Amps @ 30 VDC

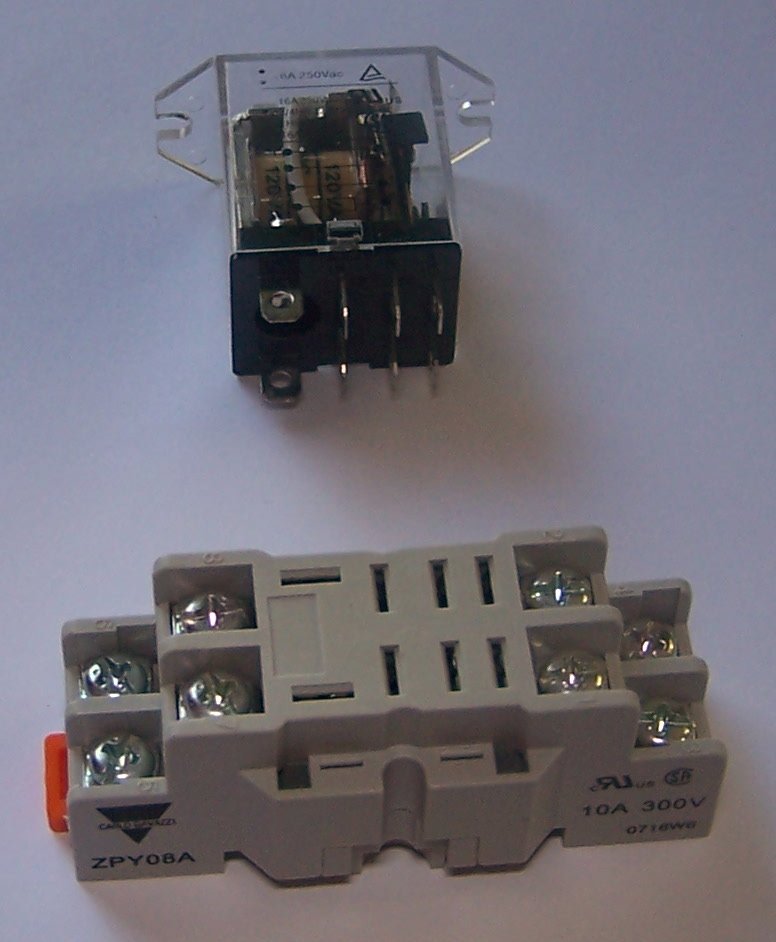

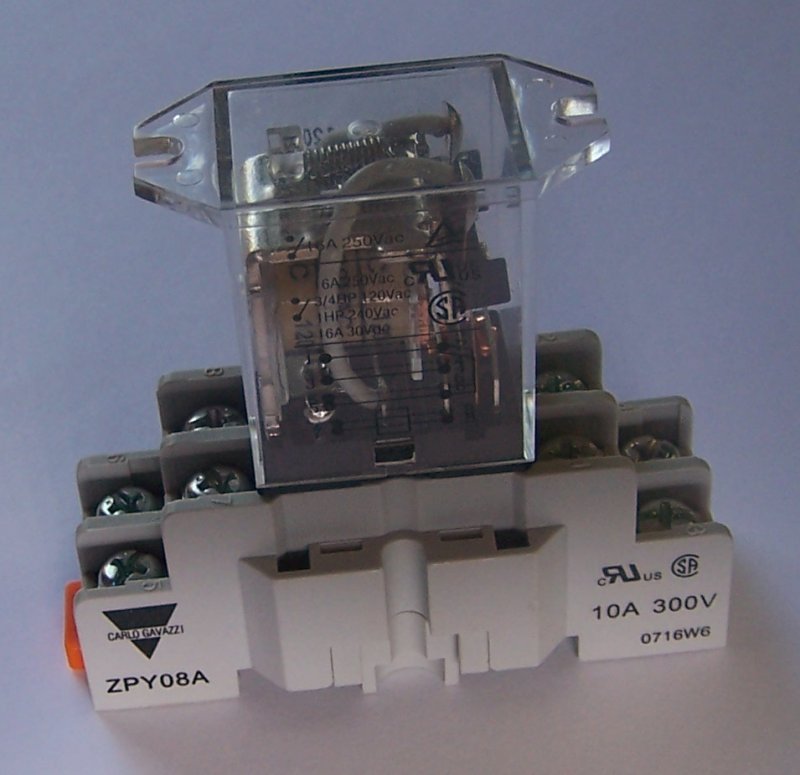

The relay has spade-type connectors, however we also offer an optional quick connect base (max 10 Amps) that provides simple-to-use screw terminals.
